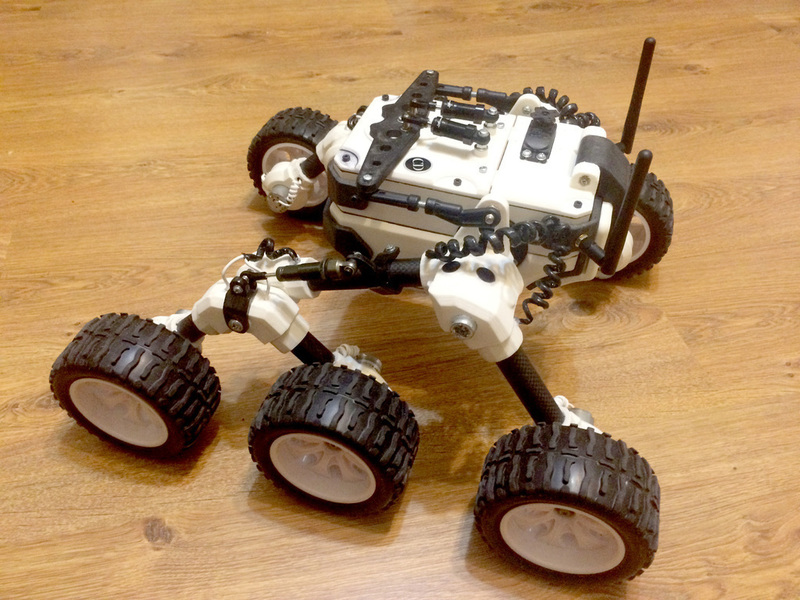

Martian rover

Prints (0)

Description

Seу My new project: http://www.thingiverse.com/thi...

There are only 19 pieces)))

is not difficult to understand. Screws: M3, M5, M10

His weight is only 2,8kg (6,17LB).

Please if you like my work, click Like my video))

Video:

motor: https://www.hobbyking.com/hobb...

These powerful motors, but the speed will be less: http://www.hobbyking.com/hobby...

Motor on aliexpress: https://ru.aliexpress.com/item...

12MM Hex connector: http://www.ebay.com/itm/3-4-5-...

Wheels: https://www.hobbyking.com/hobb...

Shock Absorber: http://www.hobbyking.com/hobby...

Shock absorber: https://www.hobbyking.com/hobb...

Hexagon Ball End: https://www.hobbyking.com/hobb...

Ball End: https://www.hobbyking.com/hobb...

ESC: http://www.hobbyking.com/hobby...

Tube carbone 20mm approximate length: 2x50mm, 95mm, 105mm

Three on the left side of the motor are connected in parallel to a single speed controller. the right side is also parallel to the second speed control. Further speed controllers are connected to the receiver from the model aircraft equipment. the first and second channel. Control equipment of RC Planes.

I use this: http://www.hobbyking.com/hobbyking/store/__8992__Turnigy_9X_9Ch_Transmitter_w_Module_8ch_Receiver_Mode_2_v2_Firmware_.хтмл (but it can be less expensive and does not matter.)

how to configure the console's hard to explain in a few words. each country has its own forum on aircraft modeling. There, people can easily prompt to configure the remote. Simply place a link to the video, and they understand everything. Now the international forum: http://www.rcgroups.com/forums...

Design Files

File Size

1.stl
214 KB
2-1.stl
225 KB
2-2.stl
230 KB
3.stl
310 KB
4.stl
251 KB
5.stl
228 KB
6-new.stl
164 KB
7.stl
200 KB
8.stl
291 KB
9.stl
464 KB
10.stl
508 KB
11.stl
630 KB
12.stl
658 KB
13.stl
444 KB
14.stl
124 KB
15.stl
141 KB
16.stl
226 KB
17.stl
258 KB
18.stl
200 KB
