ballbearing support for XYZ

Prints (0)

Description

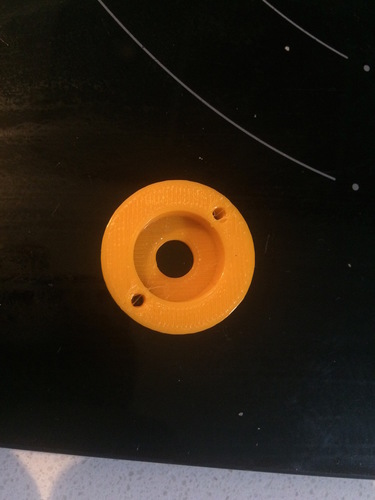

Summary this part will replace any ball bearing from xyz AIO and XYZ 1.0 printers. few days ago i started to see poor quality in my prints ... i tried to find any posts on internet but i didn't find anything to address my problem. i had an issue with all my prints but was very obvious on any round part. the objects were having an issue on the y axis... after inspecting the printer i noticed that the small belt coming from the y motor was not tensioned.. the tension pulley was not applying any tension on the belt .. then i noticed that the ballbearing support located in the right side back of the printer ( right above the motor) was cracked and ..... so i pulled it off glued it together, just to be able to print a replacement... i took some measures and came up with this one, printed it and then replaced the cracked one... now works like a charm ...

Design Files

File Size

ballbearing_support.stl
48.2 KB
