Sprung Loaded Label holder
Free

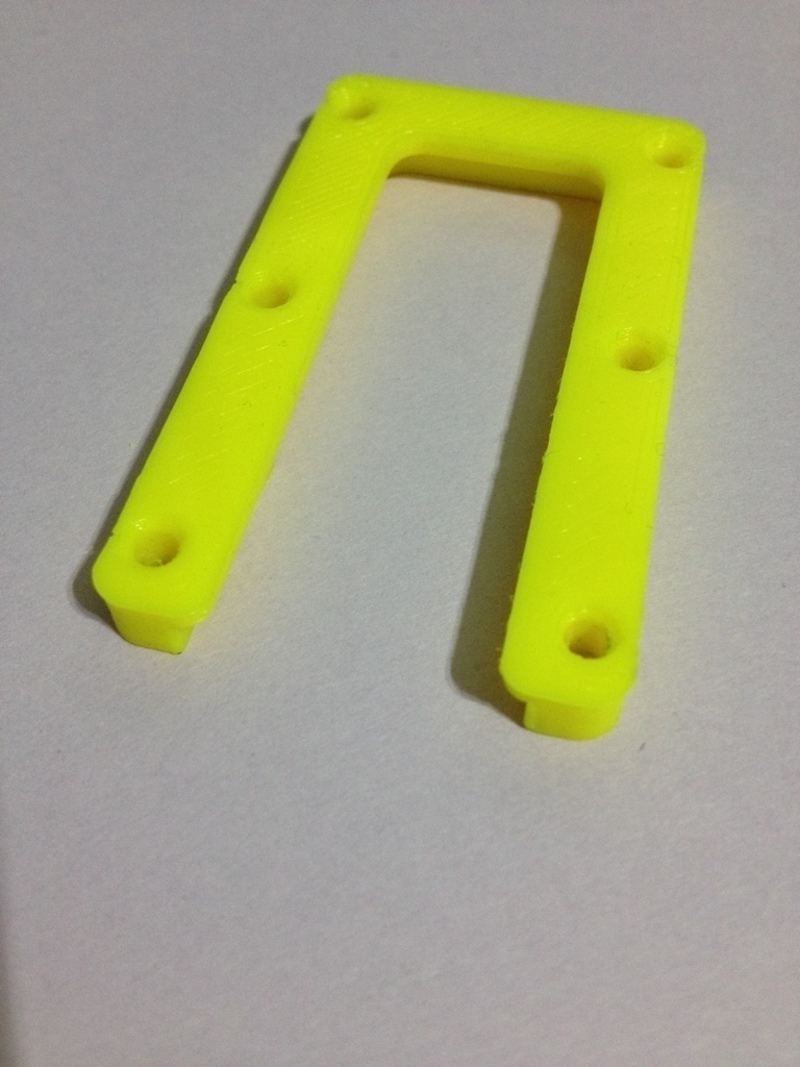

Summary This part was an experiment to see how well plastic could be printed, of interest are the two springs which are placed such that they grip the Dog-Tag type label after it is slid into the holder. I wanted to see how strong they were and how small they could be made. The original part used domed chrome screws and did not have counter sunk screw holes which I will remove as the width of the arms needs to be made wider to accommodate the counter sink hole. Also, the requirement was for them to be in Black PLA and not Yellow. Instructions This was printed in Yellow PLA on bare glass, using a RepRapPro Ormerod, pronterface/Slic3r, no support material, 57C bed, 200C Hot End.

Loading comments...

Loading prints...

Sprung Loaded Label holder

likes
0 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

1 downloadable file:

View 3D
Label_Holder.stl
STL Model
434.2 KB
File size
Free download - login required
Downloaded: 23 times
