folding chess set

Prints (0)

Description

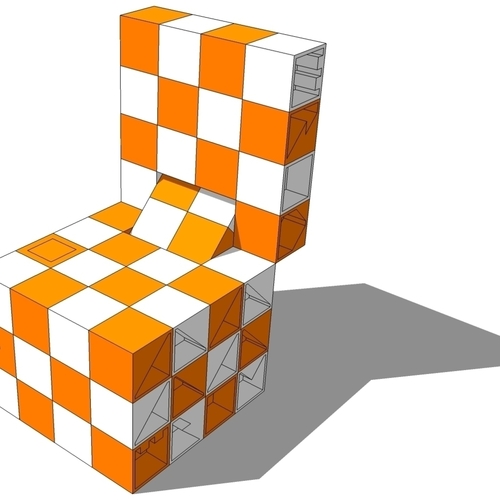

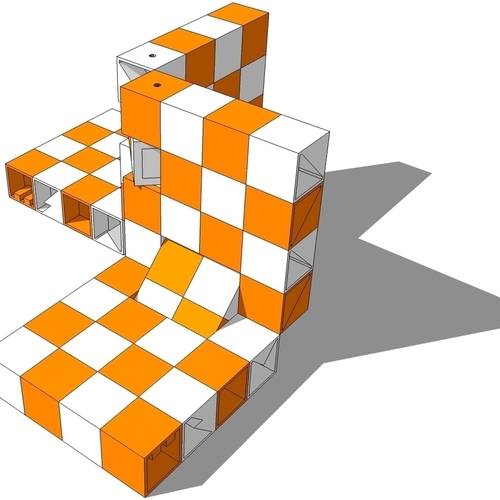

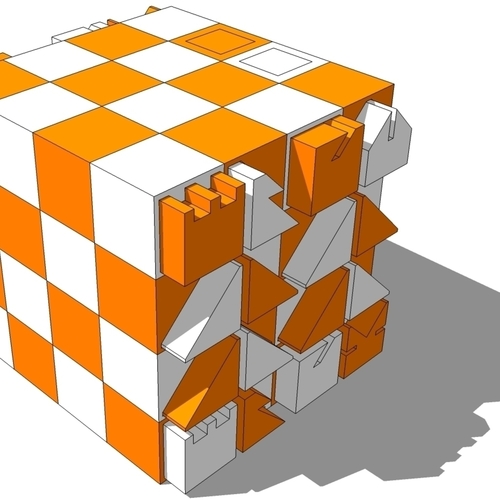

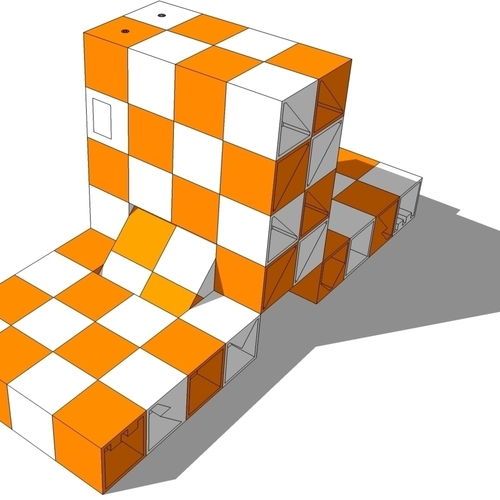

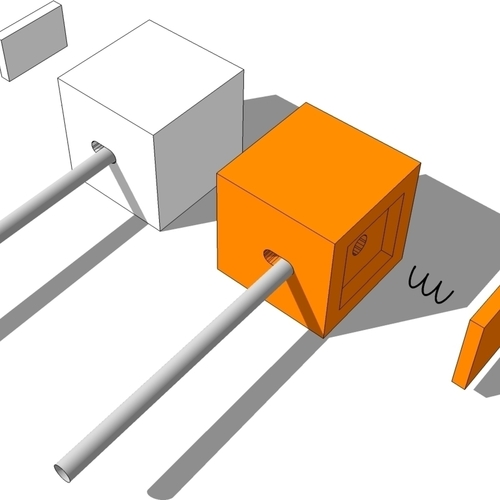

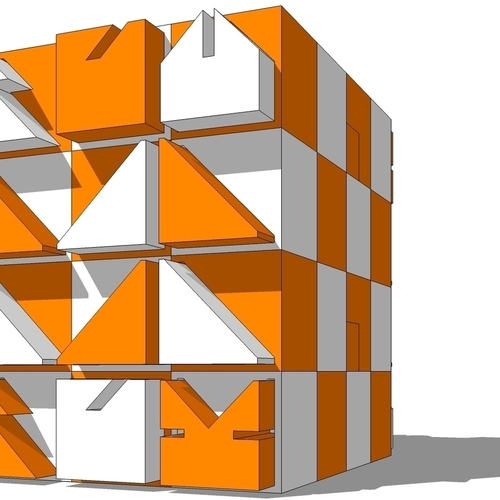

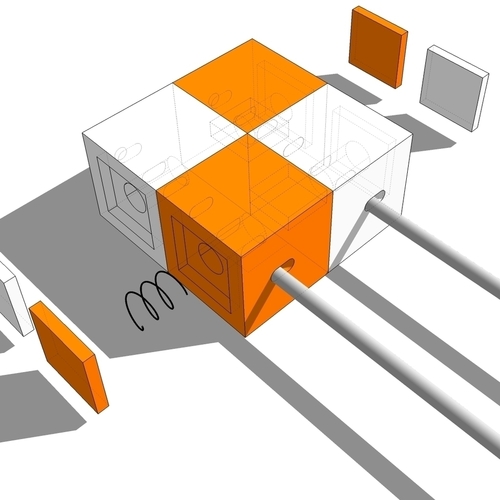

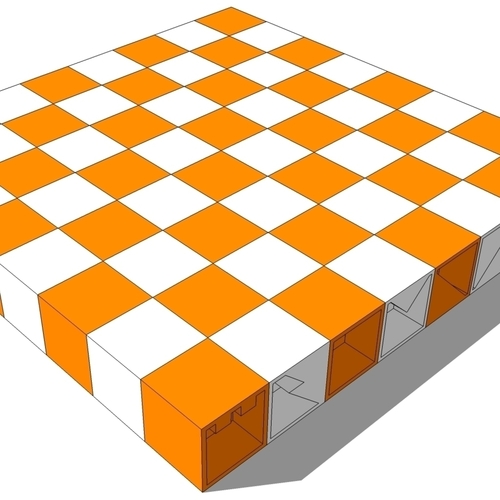

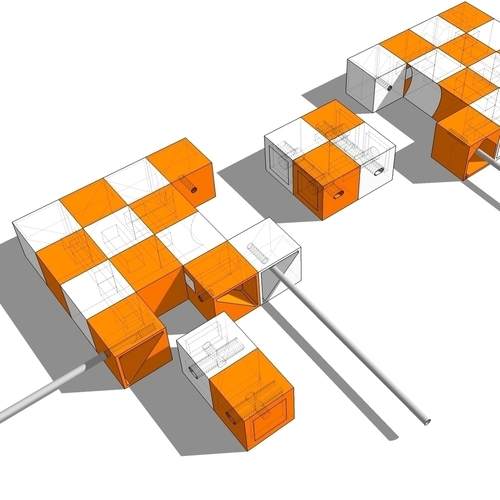

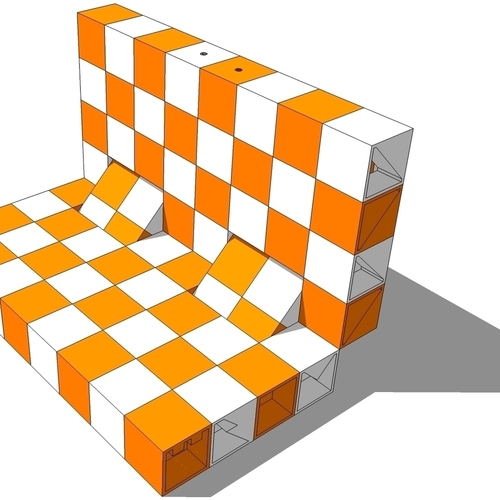

Summary a chess set that can fold and become a cube .. The pieces interlock in the side of the cube to complete it.... Instructions you need to combine the files for a dual extrusion machine, The parts need to be printed at 0.25mm or less with a 0.4 mm nozzle.. each block is approximately 30mm x 30mm .. so the build time is going to be enormous.... the joints are assembles using m3 rods and springs...

Design Files

File Size

joint_2_white_cap.stl
3.49 KB
module_3_white.stl
227 KB
mod_1_white.stl
141 KB
joint_2_black.stl
118 KB
joint_2_black_cap.stl
3.49 KB
module_2_black.stl
211 KB
joint_2_white.stl
118 KB
module_2_white.stl
118 KB
module_3_black.stl
119 KB
joint_1_black.stl
226 KB
mod_1_black.stl
143 KB
chess_pieces.stl
114 KB
joint_1_cap.stl
3.49 KB
