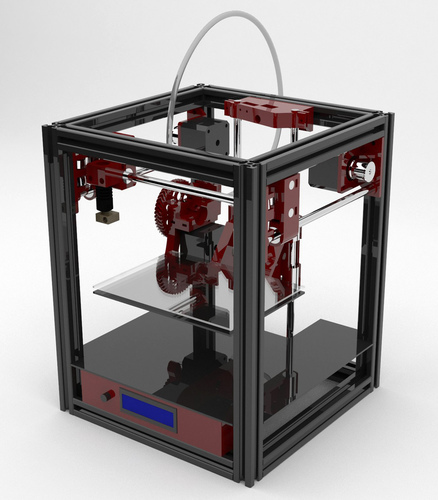

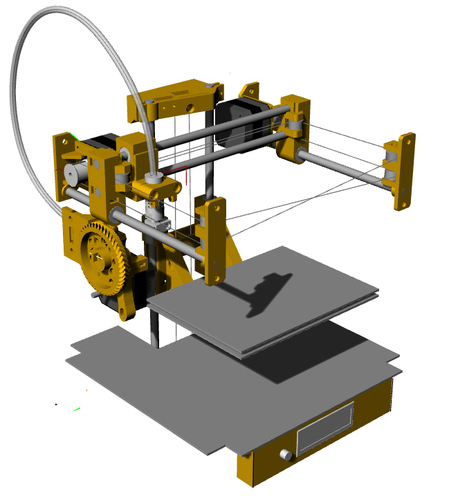

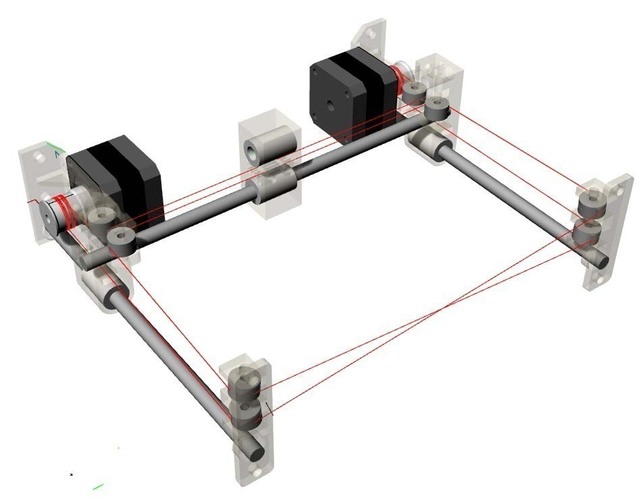

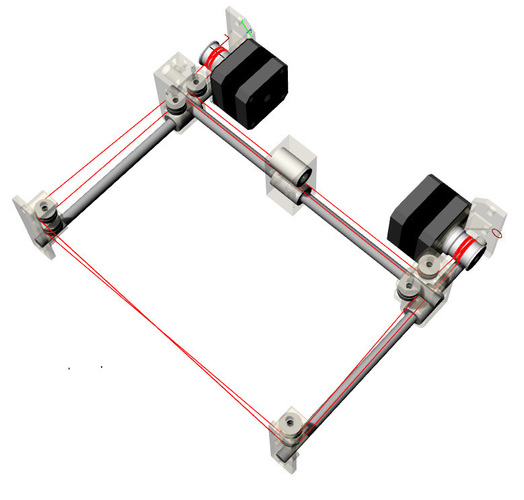

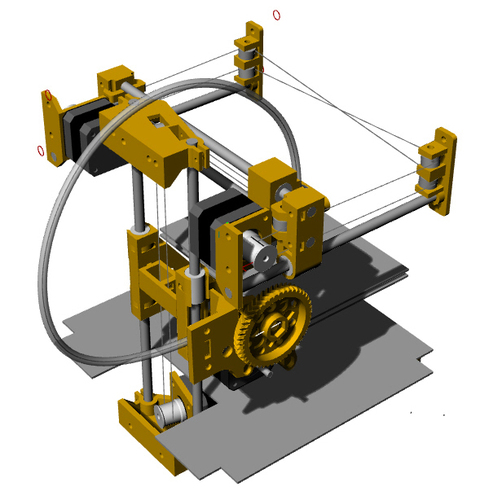

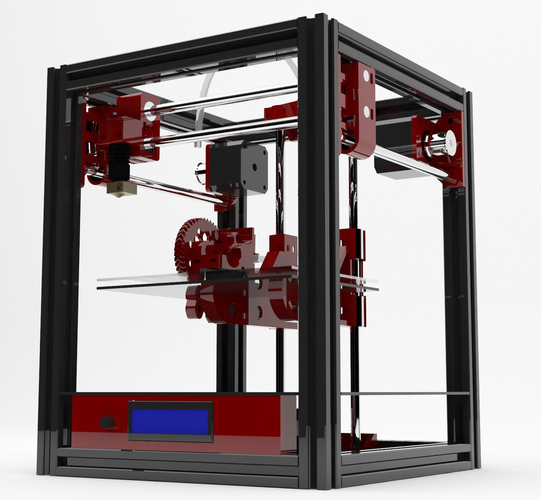

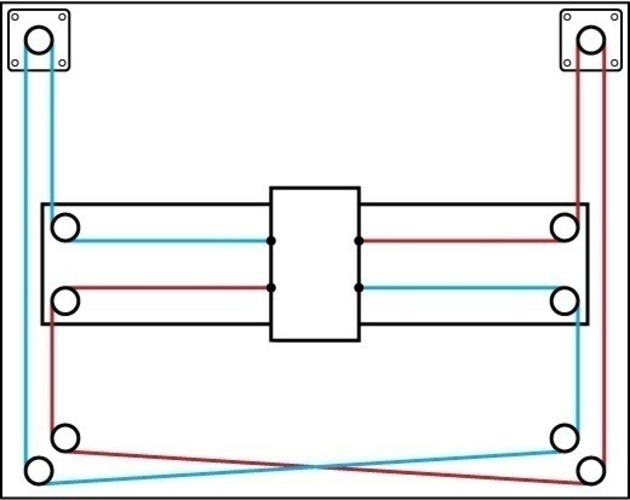

Summary This printer is mix match of a lot of printers based on the coreXY and the tantillus by sublime. My aim was to make a printer that was fast compact sturdy and neat. I have put all the parts of the printer within the frame and nothing sticks out except for the bowden cable. This saves the printer from breakage during transport and as a bonus it is easy to create a heated chamber. All the axis moving using a spectra cable instead of a belt.. The size of the printer is 240 x 240 x 300 mm the build volume is 100 x 150 x 110 mm Instructions use tslots of the following sizes t2020 200mm x 8 t2020 300mm x 4

Design Files

File Size

z_string_catch.stl
64.6 KB
j-head_holder.stl
481 KB
y_motor_mount_right.stl
46 KB
y_ideler.stl
435 KB
x_carraige.stl
421 KB
y_motor_mount_left.stl
271 KB
z_bottom.stl
459 KB
z_bracket_right.stl
325 KB
x_carraige_right.stl
553 KB
z_top.stl
604 KB
z_bracket_left.stl
325 KB
x_carraige_left.stl
553 KB
