sliced light in color

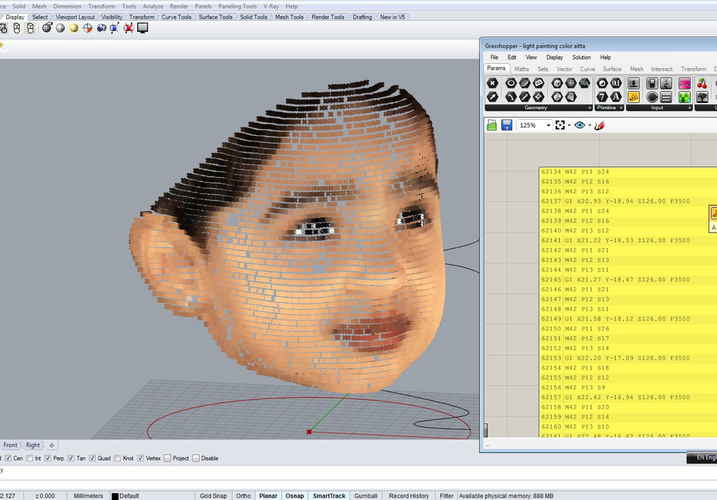

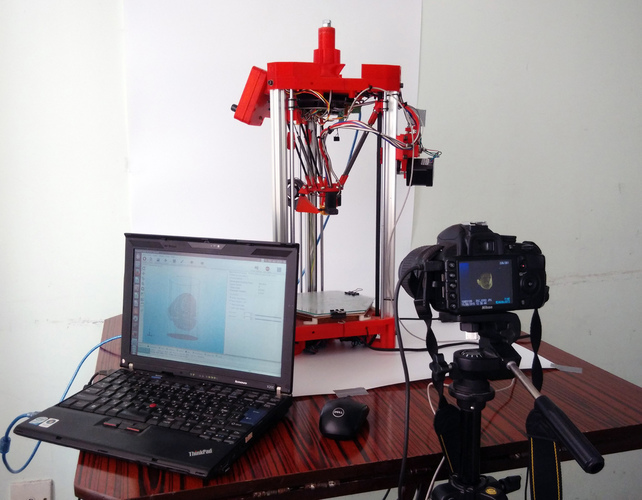

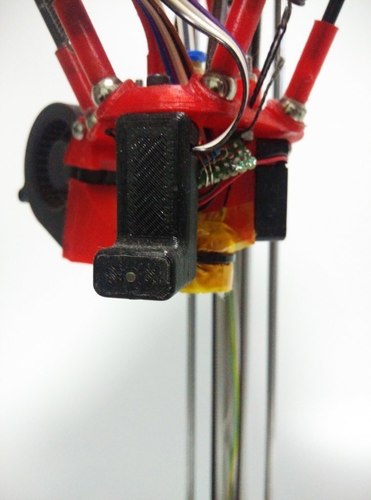

Summary This project is a extension to the project i had done before I upgraded the project to do light painting in full color. I attached a 5mmRGB led to micro platform of my 3dr delta using a proper attachment. The RGB led is attached to the pins 4,5,6 on the ramps board. Also this time i wanted the camera to start and stop automatically as it is painful holding the shutter release button for a ful 4 minutes . I attached the shutter release button to the ramps pin 11 using a opto isolator. i got my daughter 3d scanned by a professional 3d service for the light painting. As i had got my camera automated i produced gcode for multiple angles of the same face model .So with 10 different angles i was able to make a rotating gif. Also i wanted to make the painting also happen in real time in the video. Getting this done is a entire project in itself. I used a plugin for the free video editing app kdenlive.

Design Files

File Size

420 KB
