Super Ultra Compact Pan/Tilt Camera Mount - V2

Prints (0)

Description

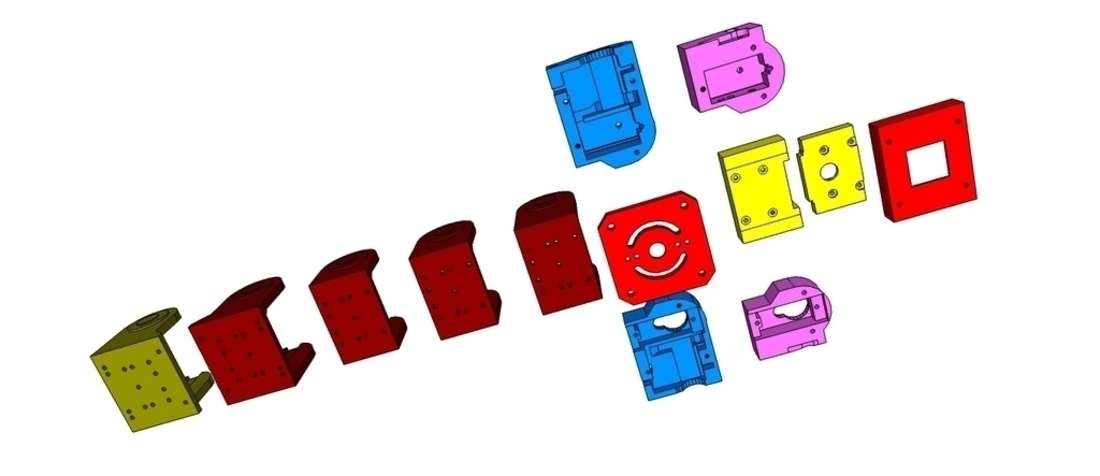

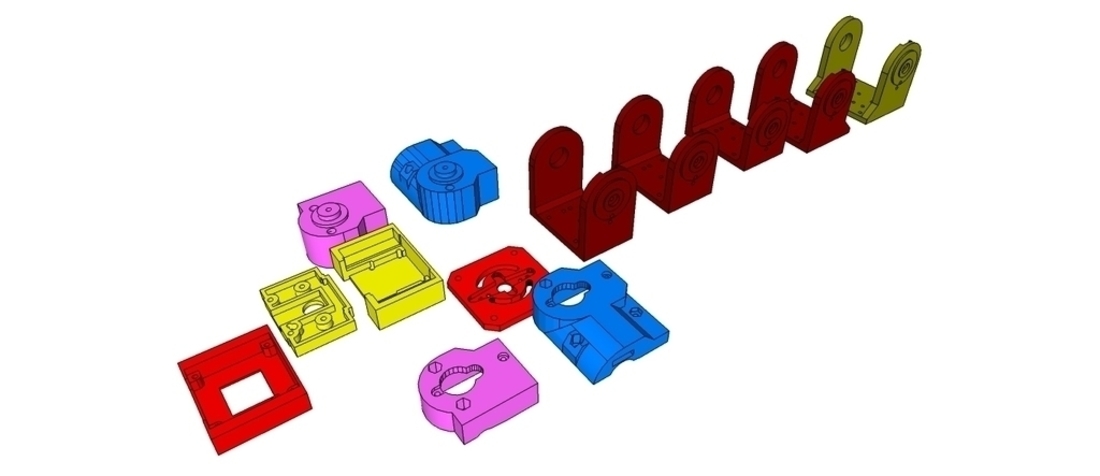

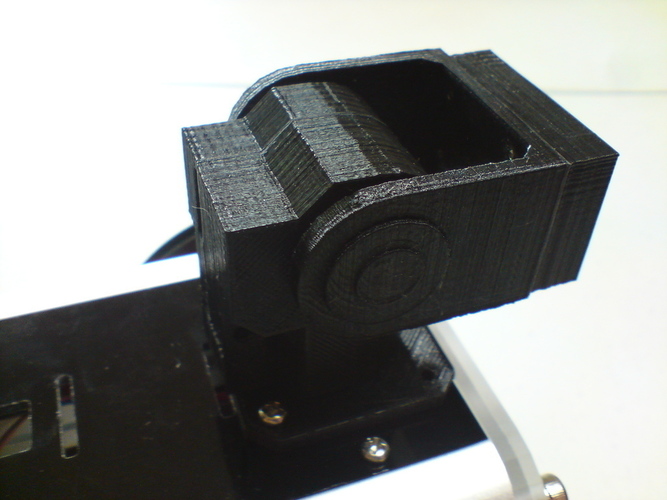

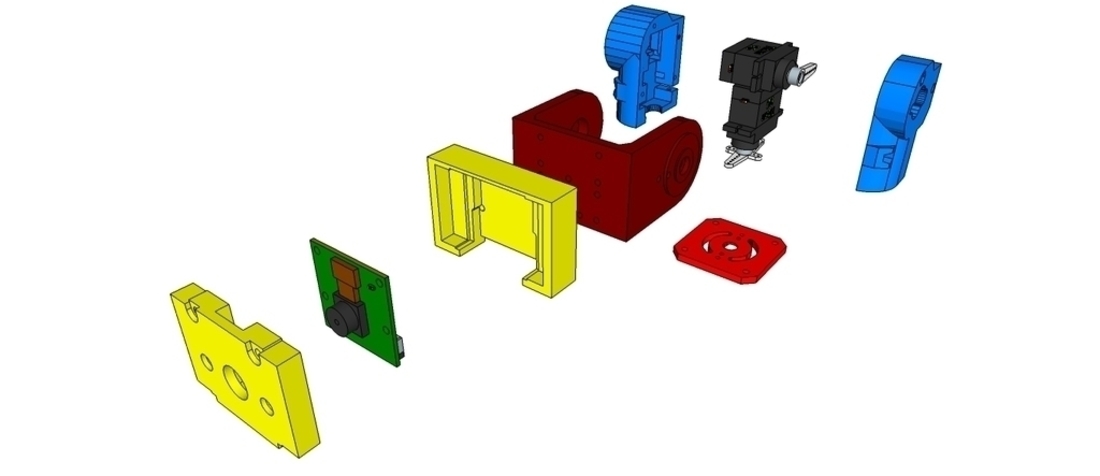

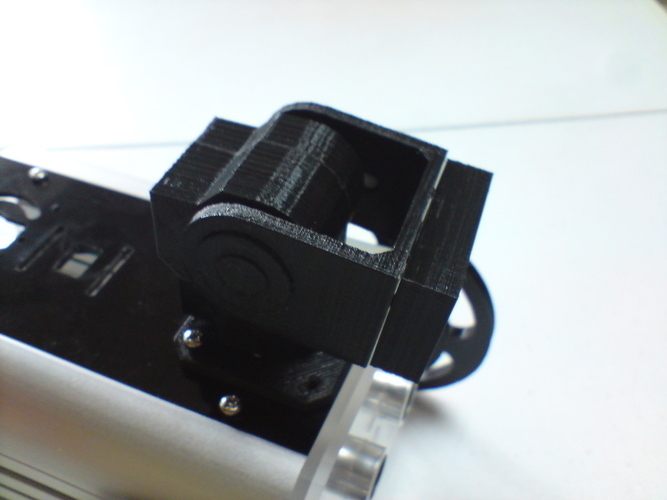

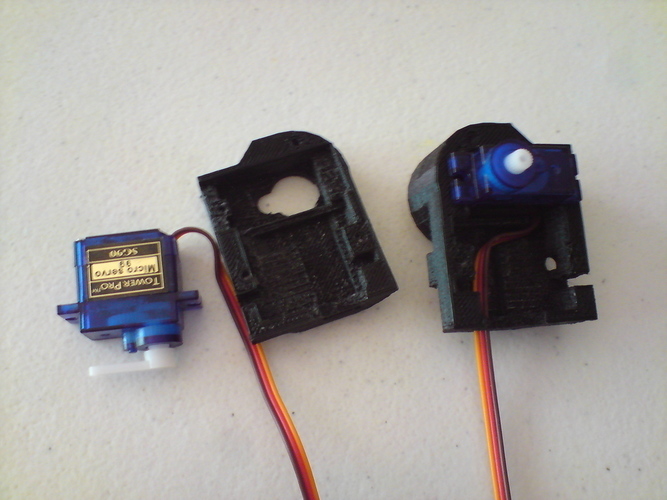

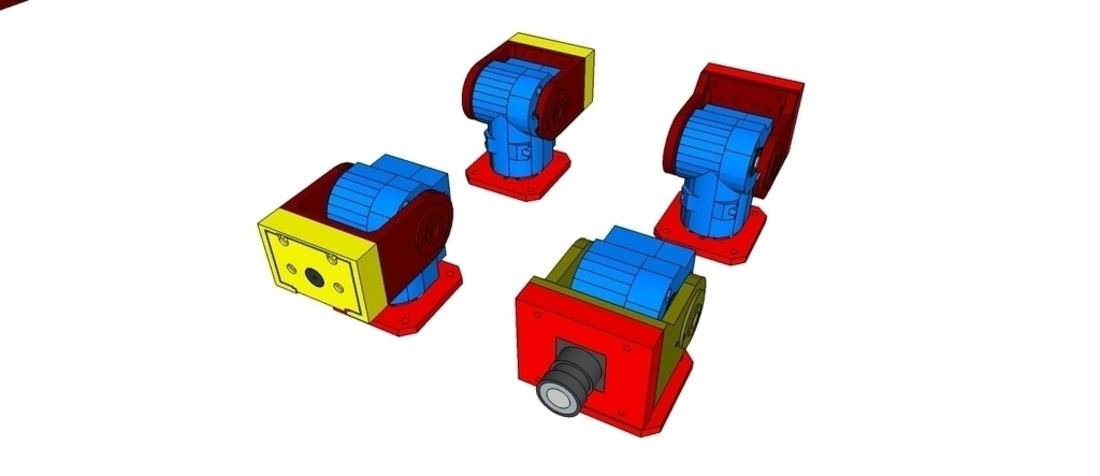

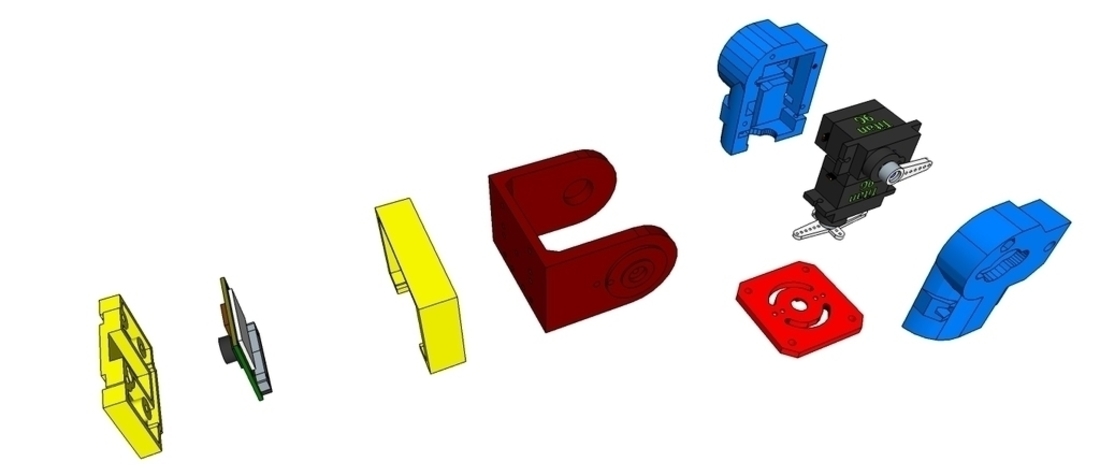

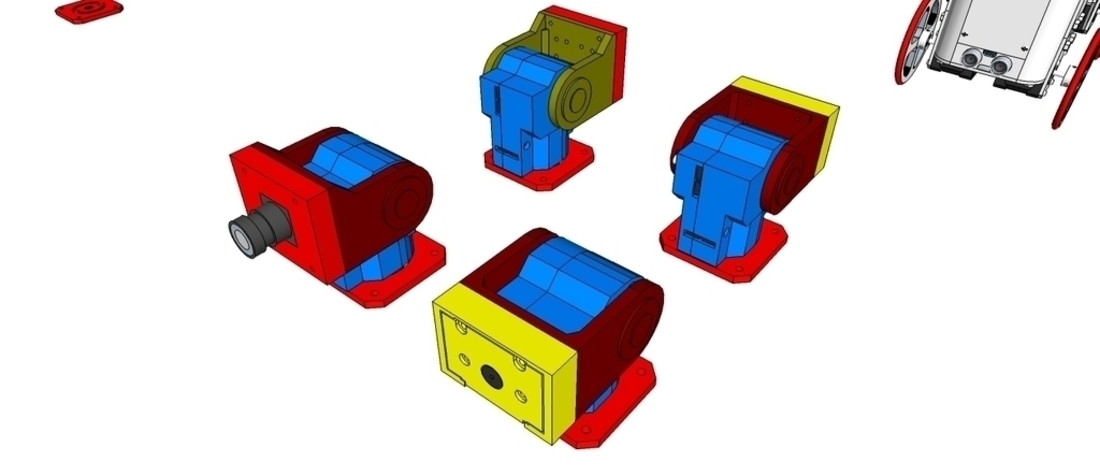

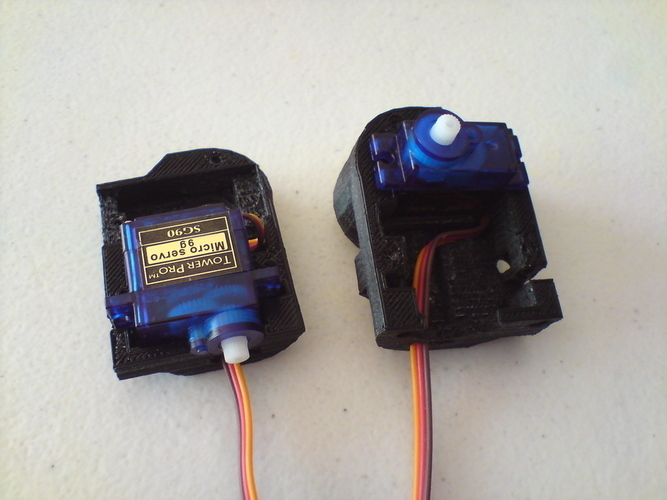

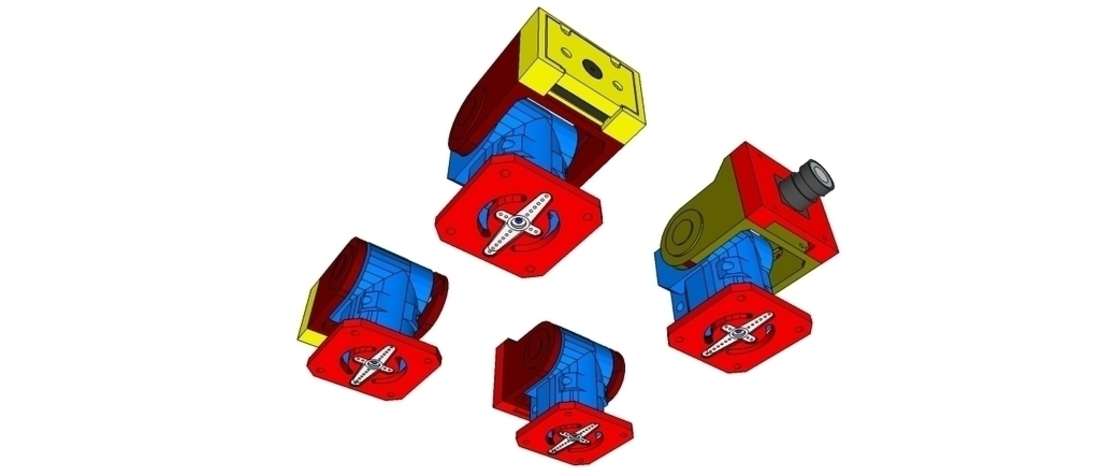

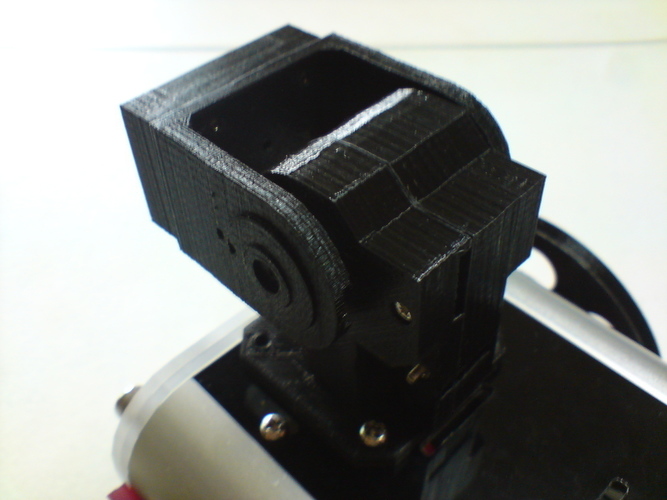

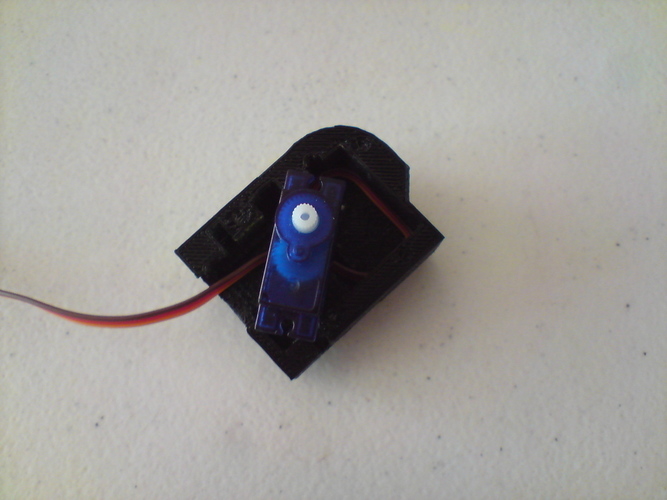

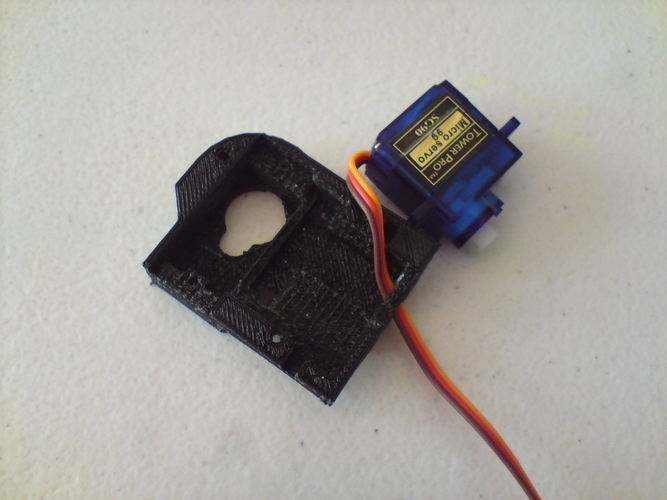

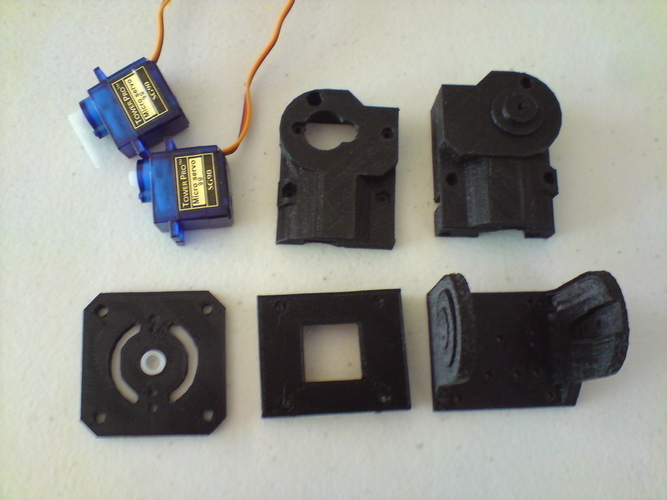

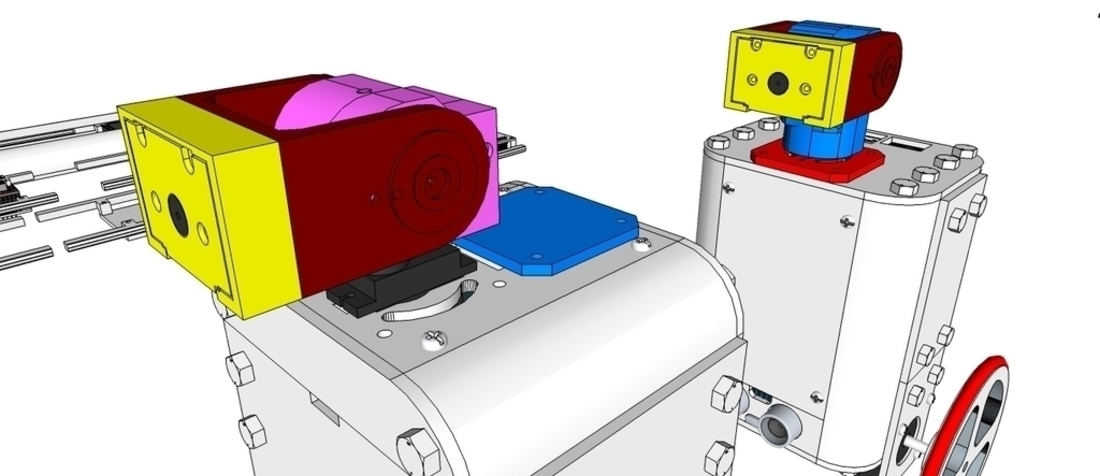

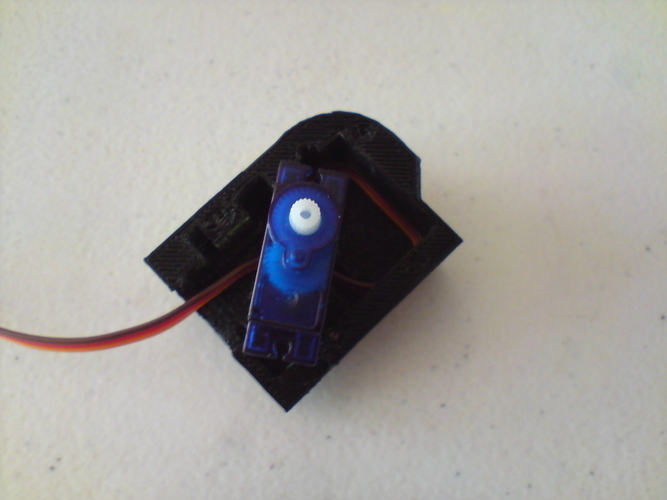

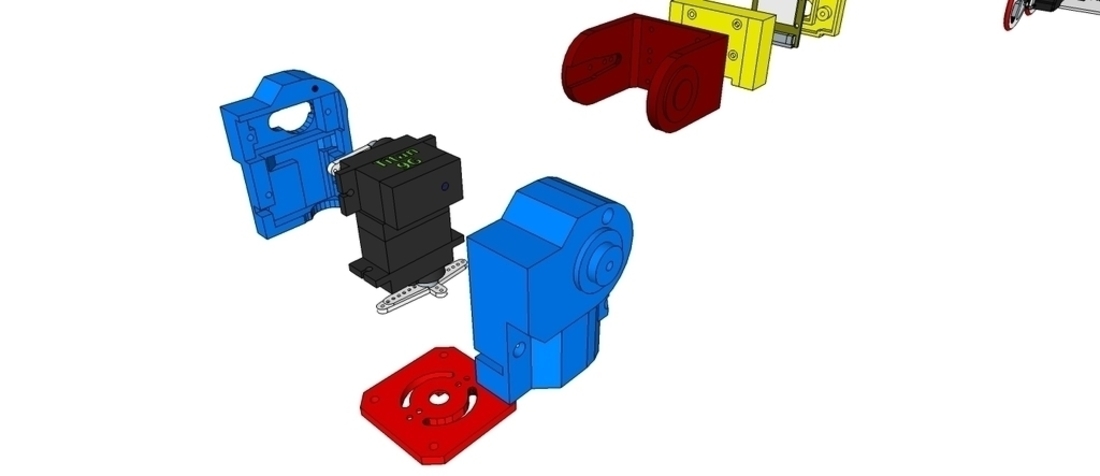

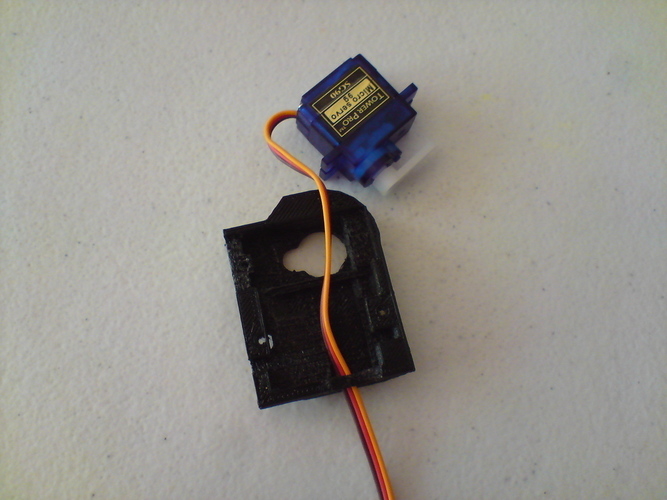

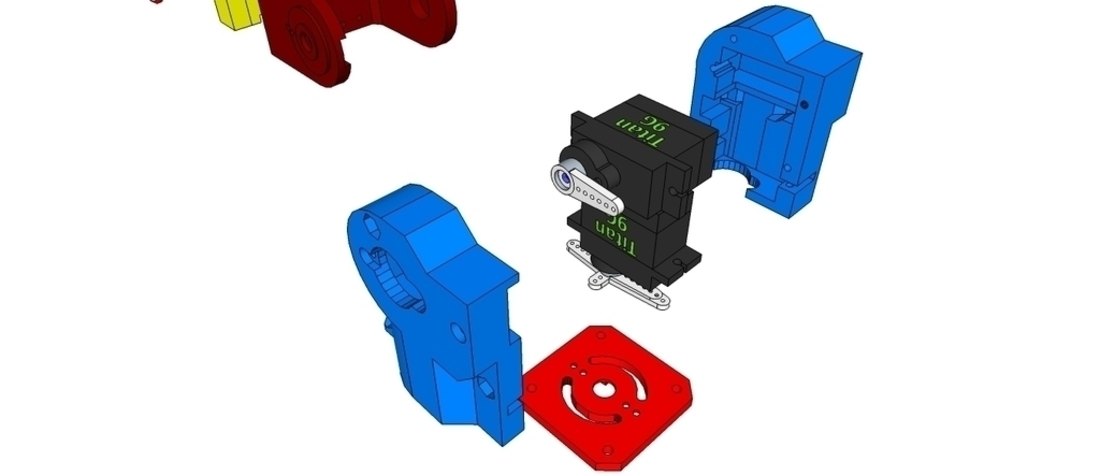

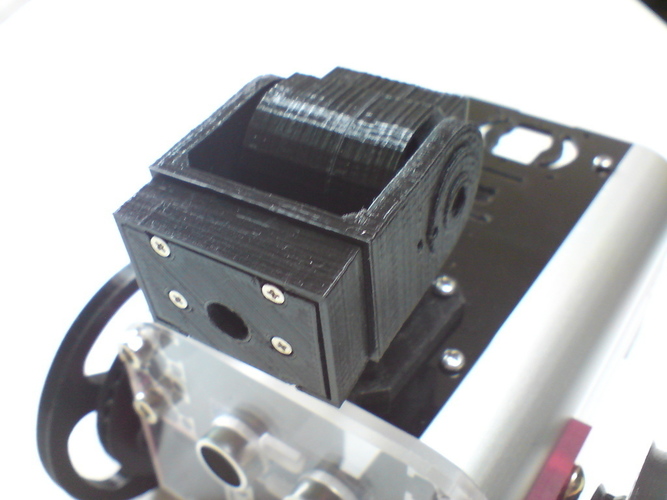

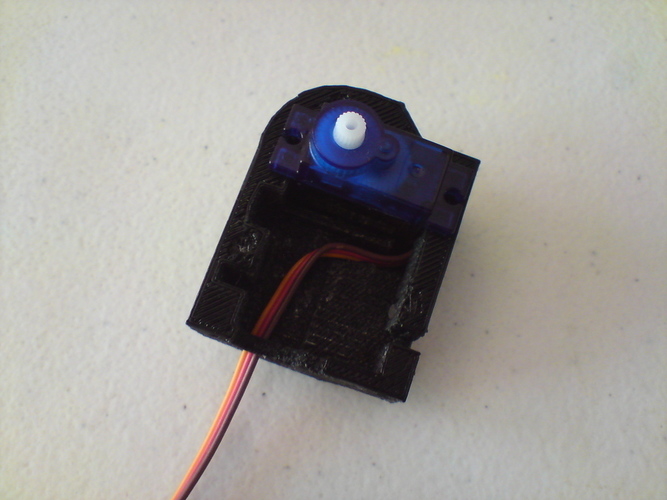

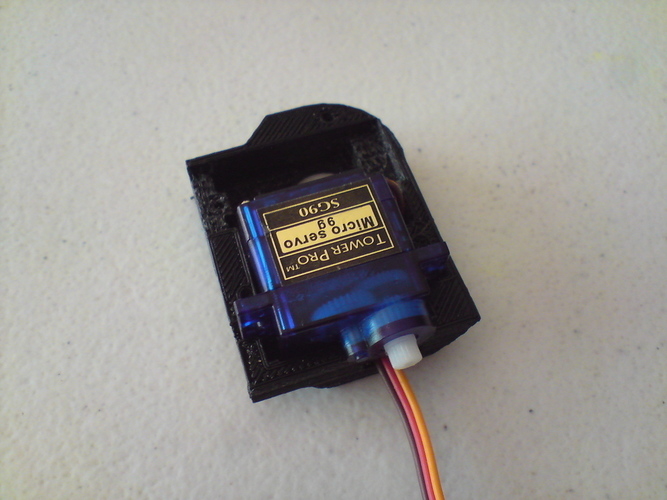

Summary [Publish 20161001] New Version Super Ultra Compact Pan/Tilt Camera Mount Old Version: V1 http://www.thingiverse.com/thi... http://www.thingiverse.com/thi... This pan-tilt kit is the perfect way to give your project full range motion with two micro servos. The pan-tilt can rotate roughly 180° from side-to-side and can tilt up&downwards around 180°. Using two Micro Servos. (Turnigy TG9G, Tower Pro SG90 or SG-92 type) 2 x 9G Servos 4 x 2mm 5mm Tapping screws [For Servo mount] 2 x 2mm 7mm Tapping screws [For Servo hone mount] 2 x M2 6mm [For pan tilt shaft mount] 4 x M2 10mm [For camera mount] 7 x M2 12mm [For base case mount] 3 x M2 Nuts [For base case mount] 4 x M3 15mm [For vert mount] Two type: Stand alone and PAN servo landfill type I look forward to seeing your build !! Enjoy! Print Settings Printer: PANDORA DXs Rafts: No Supports: Yes Resolution: 0.1 Infill: 25
