Vice Jaws (4.5")
Free

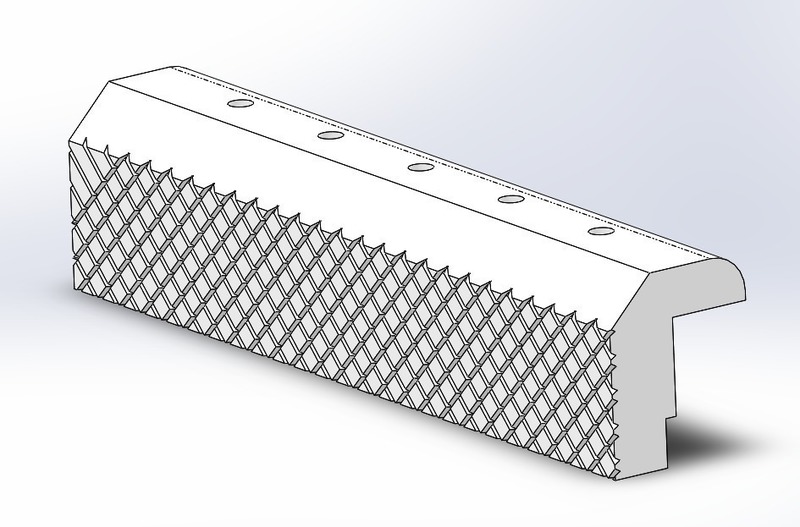

SummaryI know there are few Vice Jaws (Pads) out there already, however none seem to fit my vice. This model was created using measurements of my vice to generate the features to mate it. I plan to drop 5 [1/8" x 9/32"] cylindrical magnets into the through holes for easy mounting. One model has a flat face while the other include a V groove and a cylindrical cut for a 7mm tube. Solidworks file is included if you want to edit and create your own.Print SettingsPrinter Brand: PrintrbotPrinter: Simple RedRafts: NoSupports: Doesn't MatterResolution: .2Infill: 20%Notes: Printerbot Simple Maker 2014 (not Simple Red) I will print and post pictures later.

Loading comments...

Loading prints...

Vice Jaws (4.5")

likes
1 collection
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

2 downloadable files:

View 3D
jaws-V7mm.STL
STL Model
181.7 KB
File size
View 3D
jaws-SOLID.STL
STL Model
182.8 KB
File size
Free download - login required
Downloaded: 47 times
