mpcnc xyz sandwitch support Ver. 2

Prints (0)

Description

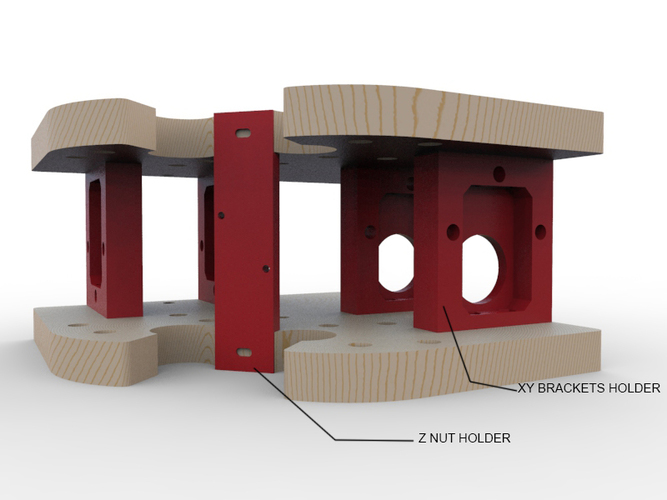

SummaryI want more rigidity. So in this second version, I added 19mm. wooden supports between two covers lad. This will definitely give much more rigidity to the three axes. As do my tests, I'll upload a video. Update 20/05/16 Added Z Nut Bracket Holder Added XY Brackets Holder. DXF files change. Thanks for Worker Drone Working

Design Files

File Size

XY_BEARING_BRACKET.stl
564 KB
ZNUT_HOLDER.stl
115 KB
MIDDLE_HOLDER.stl
291 KB
Z_BEARINGS_BRACKET.stl
459 KB
