Housing for LCD + Keypad from RepRapWorld
Free

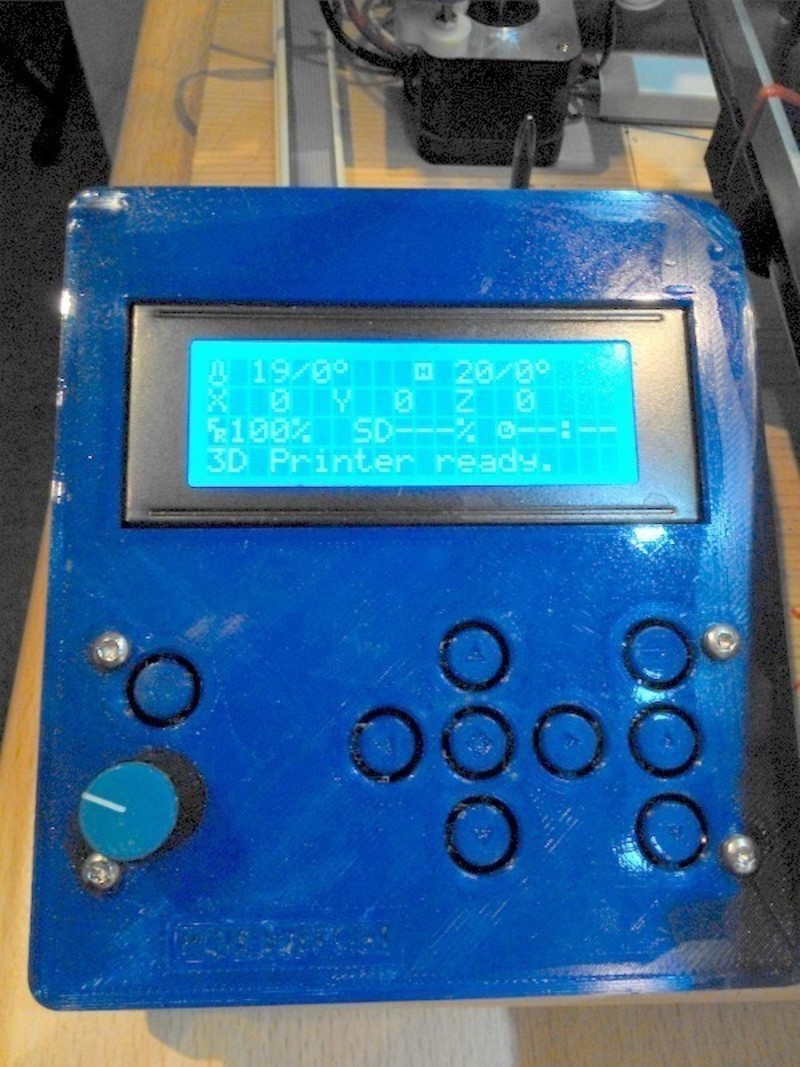

SummaryFrom RepRapWorld I bought their LCD + keypad, but they had no housing available. So I developed in SolidWorks this Housing making special knobs as part of the housing. I mounted the keypad on screws and positioned it carefull between nuts so the switches are exactly touching the buttons. Now you can push the buttons on the outside for 0,5 mm which is sufficient to operate the switches. I made the gcode with Simplify3D. It took me almost 6 hours to print it.

Loading comments...

Loading prints...

Housing for LCD + Keypad from RepRapWorld

likes
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

1 downloadable file:

View 3D
LCD_keypad_schuin.STL
STL Model
37.4 MB
File size
Free download - login required
Downloaded: 22 times
