Electric Vehicle j1772 Inlet Cover
Free

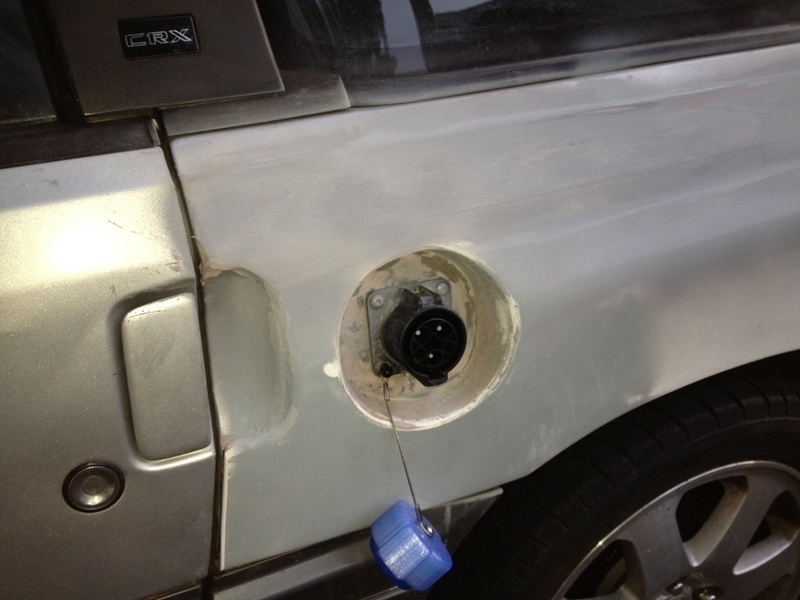

SummaryThis is a cover for a charger inlet on an electric vehicle. InstructionsPrint it out. I had intended to use o-rings to supply some sealing and friction but I didn't have any appropriately sized ones so I used some Sugru. I spread it around on the inside (where the o-ring grooves are). It didn't have to be very thick. You could also modify the scad file to get it to work with o-rings if you have the right size. There is a 4mm hole in the STL for a bolt to attach a tether. You can disable it in the openscad if necessary.

Loading comments...

Loading prints...

Electric Vehicle j1772 Inlet Cover

like
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

1 downloadable file:

j1772_cap.stl
STL Model
~1-5 MB
Est. size
Free download - login required
Downloaded: 18 times
