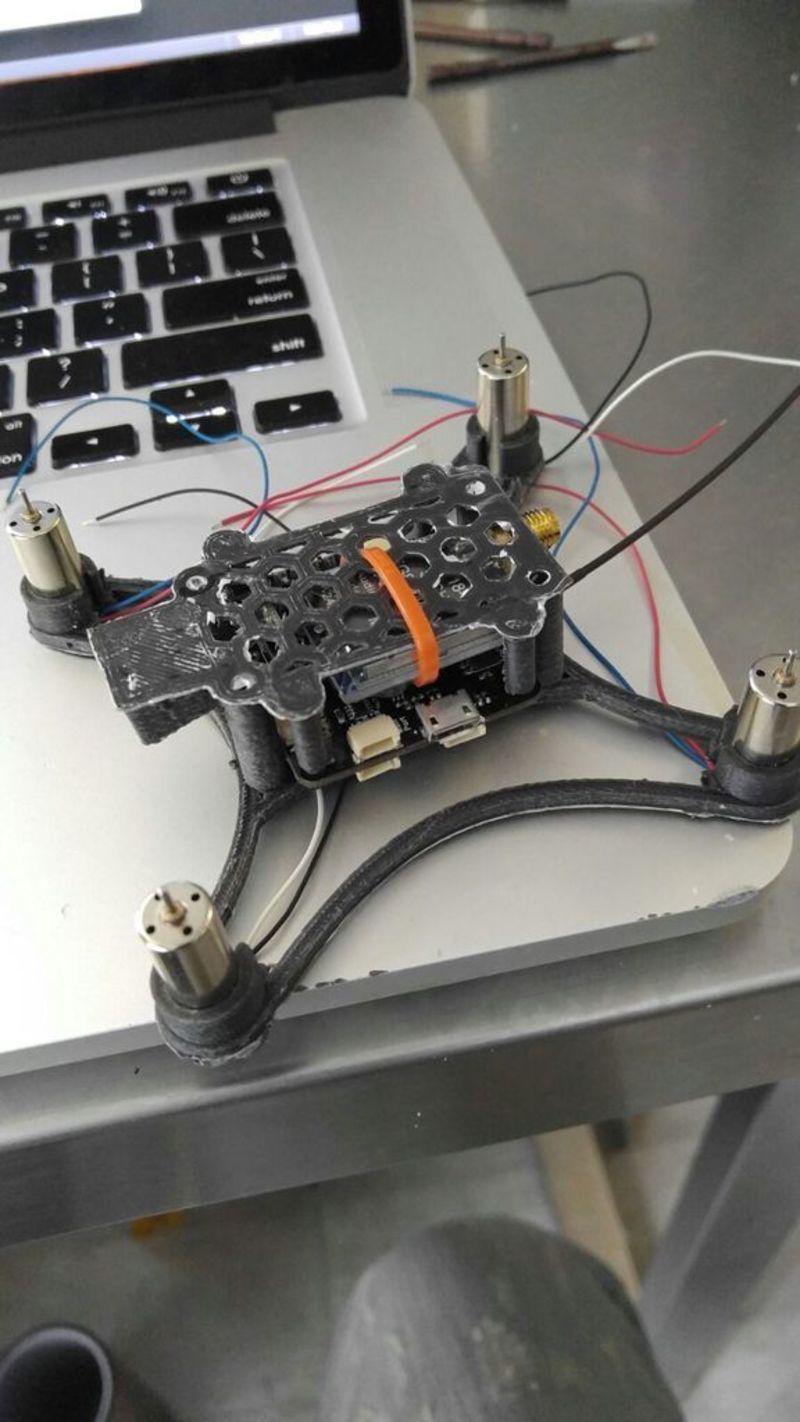

Micro 105mm (30.5mm FC Edition)
Free
Summary** Renamed the 25degree file . (Shouldn't have the cam down wording anymore), but is the same file as before. Added mount poles to support 30.5mm FC and a space for a vtx. Place mount and melt the poles to support it in. I am using a sparky2 with a standard 200mw vtx on it. (Note 6 pins connector will be blocked, probably best to solder it off and direct wire the motor wires on the pcb pads. Non-tested setup.. (waiting on my battery) Step up 3.7-> 12V goes to VTX and sparky2 Sparky2 3.3 to camera.

Loading comments...

Loading prints...

Micro 105mm (30.5mm FC Edition)

like
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

2 downloadable files:

View 3D
micro105-top-v2-cam-down_No_clip_30.5.STL
STL Model
294.6 KB
File size
View 3D
micro105-top-v2_No_clip_30.5mm25degree.STL
STL Model
301.6 KB
File size
Free download - login required
Downloaded: 17 times
