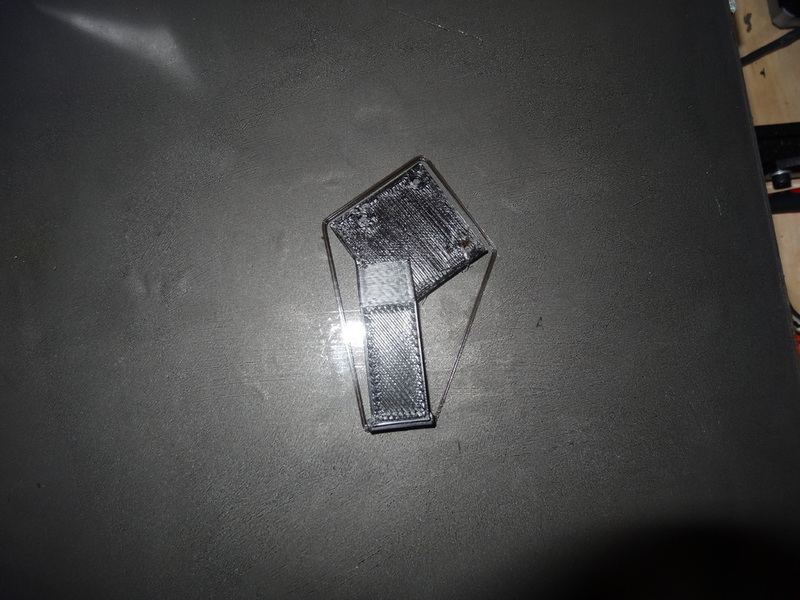

PX4FLOW Mount for X8 3DR UAV  Version 1.0
Free
SummaryThis is a quick and dirty PX3Flow mount for my 3dr X8 UAV. I didnt really have a good place to mount this on the frame, so I whipped up this little mount that attaches to the front left left. A quick overview video is here: https://youtu.be/UnaksthPU7c I have also attached the openscad file if you need to do additional adjustments. New version is in work that provides a bit more protection.InstructionsI printed this with the following settings: 1) PLA 2) 60% fill, but can probably go lower 3) .35 nozzle 4) High speed, takes about 20 minutes to print. In the open scad file, the "hold_knob" value can be changed to make the fit tighter, or looser.

Loading comments...

Loading prints...

PX4FLOW Mount for X8 3DR UAV Version 1.0

likes
0 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

1 downloadable file:

View 3D
Flow_Mount4.stl
STL Model
241.2 KB
File size
Free download - login required
Downloaded: 22 times
