QAV210/QAV180 motor protection (Flexible)
Free

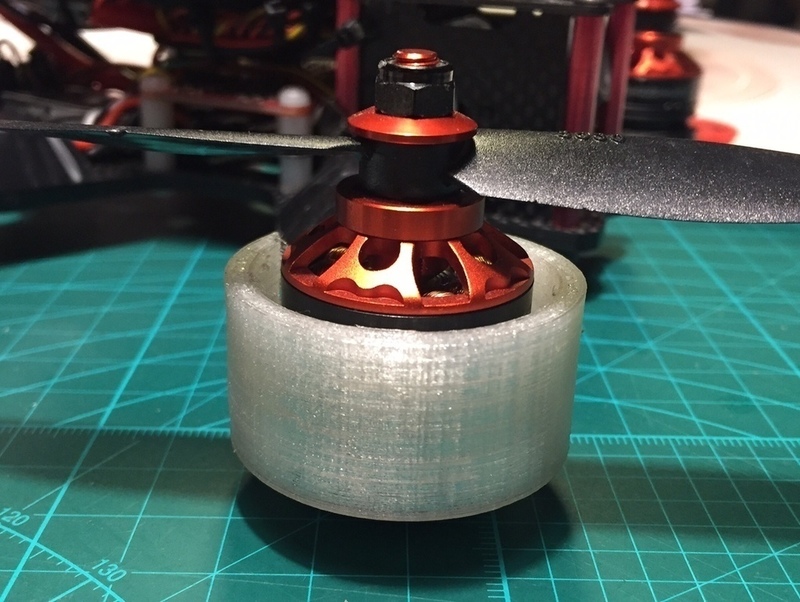

SummaryHi, those are various version of motor protection for QAV210/QAV180. It has been printed in filaflex/ninjaflex and sound to protec nicely your motors ! Shoe in PLA, layer 0,15, infill 20%. the variation are only on the opening, 3 holes diameter 4mm 4 holes diameter 2.5mm 4 holes diameter 2mm No holes Thanks to Abdrx for testing and Picture : see AMR Forum No over heating of motors have been seen... In winter time ^^ Feel free to comment and remix !Print SettingsPrinter Brand: RepRapPrinter: Prusa I3Rafts: NoSupports: NoResolution: 0,2Infill: 20%Notes: At least 2 wall thickness,

Loading comments...

Loading prints...

QAV210/QAV180 motor protection (Flexible)

like
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

5 downloadable files:

View 3D
QAV210-QAV180-motor_protec_without_hole.STL
STL Model
114.9 KB
File size
View 3D
Shoe.STL
STL Model
142.8 KB
File size
View 3D
QAV210-QAV180-motor_protec_with_hole_3xd4.STL
STL Model
186.0 KB
File size
View 3D
QAV210-QAV180-motor_protec_with_hole_4xd2.STL
STL Model
205.0 KB
File size
View 3D
QAV210-QAV180-motor_protec_with_hole_4xd2.5.STL
STL Model
205.9 KB
File size
