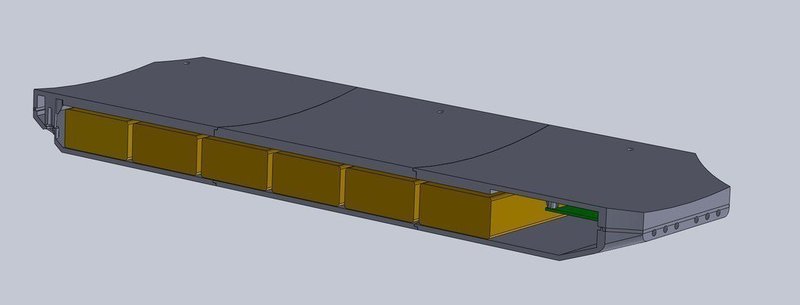

SummaryThis is a low profile battery and electronics enclosure for an electric skateboard.
It holds 6x Zippy 20C 3S 5000 mah and and two VESCs (Vedder's ESC).
http://vedder.se/2015/01/vesc-open-source-esc/
Here is the repository: https://github.com/djodom/eskateboard_vesc_batt_case/
Update to v1.1: Edited the lip/groove to enable modularity in the length of the system. Use as many middle sections as necessary or remove the middle altogether to fit your particular setup.InstructionsMade in Solidworks 2015.
It prints on 6x6x6.2" printer. Split into 6 parts. Print with supports, its important that the part does not warp. PLA seems to have the smallest warp on this tall thin-walled part.
