SummaryThis is a cable clip i designed to hold 5 or 10 UTP/FTP LAN cables. The idea is that you place multiple of these to guide some LAN cables on a board to a switch.
It can hold cables from 3.5mm to 5.5mm.
Use the below print settings for good flexibility:
layer height: .2mm or .25mm
shell thickness: 1.2mm
bottom/top thickness: 0 micron
fill density: 0%
Use no support or platform adhesion.

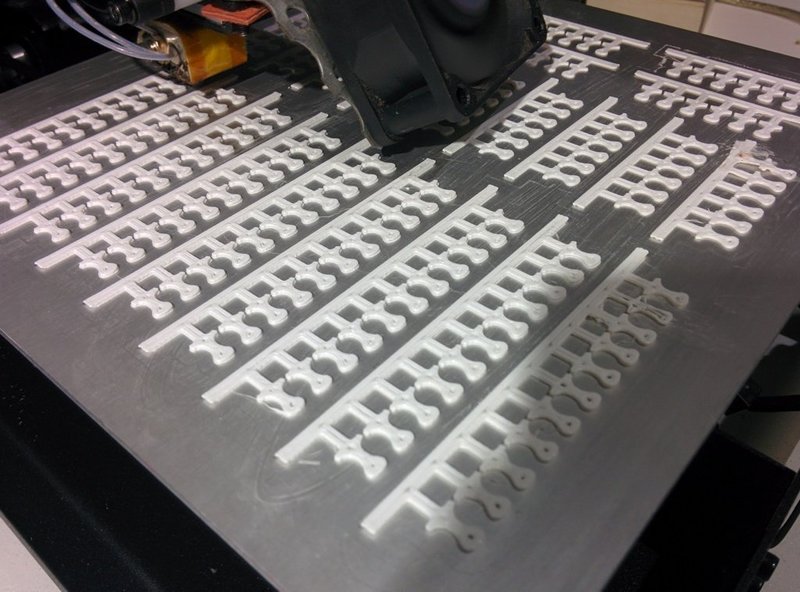

I printed 24 of these on a single plate. Print SettingsPrinter: Wanhao duplicator i3Rafts: NoSupports: NoResolution: 200Infill: noNotes: Best in PLA for flexibility, but will probably work in ABS or PC too. How I Designed This3dsmaxdesigned in 3dsmax 2015 using extruded splines and proboolean
