The Convenient Typer
Free

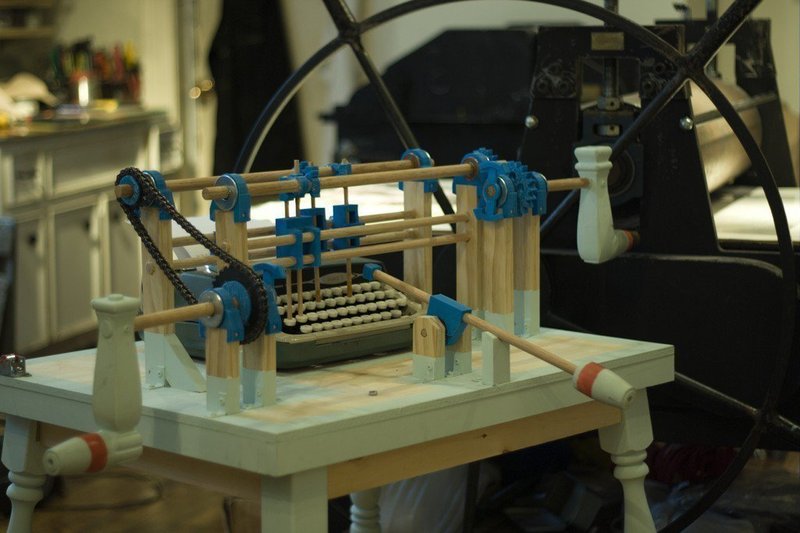

Summary This is an apparatus designed to allow three people to conveniently type out a specific phrase: it is as it is Each person must time their actions specifically, and operate their portion of the device with care. This device was made to be a performance at a local art-event. Its operation is (of course) far from convenient, but it does type out the most true thing I have ever known. Instructions I am sorry, but I did not take enough pictures, and in general, I am not sure if I could communicate how this device was built. I have included for you every part that I 3-d printed, as well as the .blend file, which contains a scale model of the typewriter, and all of the printed components in their functional positions. I do believe you would be able to reverse engineer the device by examining the .blend file. However, if their is interest, then I will do my best to draft a step by step set of build instructions. Some notes: The 3D parts with a letter in their title (S-gear.stl for example) correspond to the letter on the typewriter with which that part interacts. The exceptions are the parts with "L" or "R" in the title...those correspond with "Left" or "Right". Also note: "I-gear" and similar parts have two teeth side by side, but I ended up reducing that (with a saw) to one. To type out the word three people (or an individual with long arms) must use the two word handles, and the space bar presser with specific timing. The correct timing is as follows: Type 2 letters with the right handle, space bar, type one letter with the right handle, one letter with the left, space bar, type two letters with the left handle, space bar, and repeat. These openscad scripts were used: I have attached to this thing my (slightly) modified versions of the above scripts. sidenote: after re-reading these instructions...I don't see how any most of it will make sense to anybody.....here is my apology in Red Dwarf form:

Loading comments...

Loading prints...

The Convenient Typer

likes
0 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

19 downloadable files:

View 3D
A-gear.stl
STL Model
127.9 KB
File size
View 3D
arrows1.stl
STL Model
482.5 KB
File size
View 3D
arrows2-not-manifold.stl
STL Model
482.1 KB
File size
View 3D
A-S-box.stl
STL Model
342.2 KB
File size
View 3D
Big-gear.stl
STL Model
460.1 KB
File size
View 3D
gear-hold-big-for-metal-gears.stl
STL Model
159.5 KB
File size
View 3D
gear-hold-small-for-metal_gears.stl
STL Model
159.4 KB
File size
View 3D
I-gear.stl
STL Model
184.1 KB
File size
View 3D
I-T-Box.stl
STL Model
150.4 KB
File size
View 3D
L-bearing.stl
STL Model
194.2 KB
File size
View 3D
R-bearing.stl
STL Model
194.6 KB
File size
View 3D
S-gear.stl
STL Model
184.7 KB
File size
View 3D
small-gear.stl
STL Model
264.0 KB
File size
View 3D
space-bearing.stl
STL Model
169.0 KB
File size
View 3D
SPRING.stl
STL Model
29.5 KB
File size
View 3D
space_press.stl
STL Model
65.2 KB
File size
View 3D
stick-teeth-1.stl
STL Model
8.3 KB
File size
View 3D
tension.stl
STL Model
141.1 KB
File size
View 3D
T-gear.stl
STL Model
128.3 KB
File size
