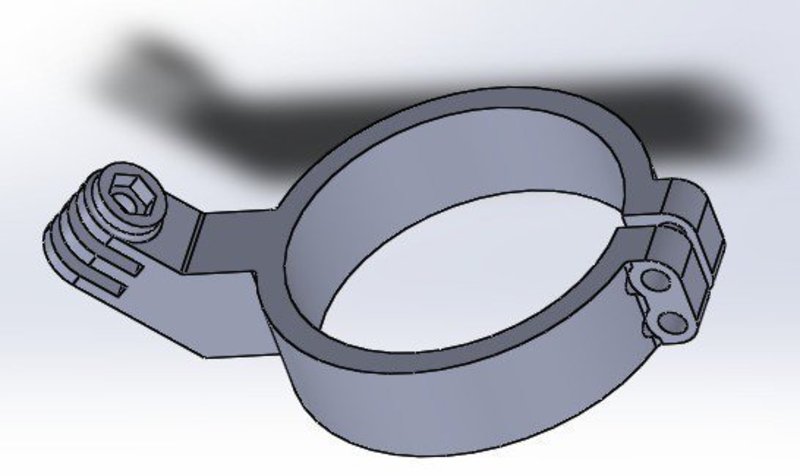

Gopro mount for the fork of a dirt bike. Made specifically to fit a wr450f, but would likely fit almost any bike with the same fork diameter (59.5 mm or so). Use m5 bolts to clamp it down, and the m5 bolt that comes with the gopro to mount the camera itself. I have had good luck printing at .2 layer height with no support material made with abs, but your printer settings may vary. Hope it's useful to someone else too!
-Included is the solidworks file in case anyone needs to edit the sketch, or change the diameter for a different fork size.
