A compact corner datum gauge for joining tiled PDF sewing-pattern pages. Body: 70 x 70 x 3 mm, with two open registration tunnels and orthogonal reference edges.
Use millimetres. Print the PDF pattern at actual size, measure its test square in both directions, and match registration marks before joining sheets. This gauge does not validate printer scale, cutting accuracy or fit.

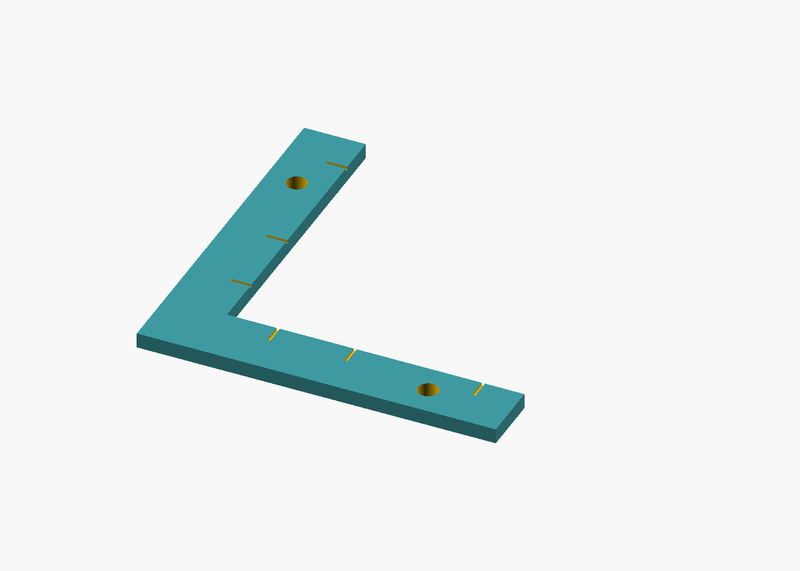

Download included here: STL model. The gallery shows a dimension drawing and a synthetic CAD render. Digital checks cover watertightness, winding and nondegenerate faces. No physical print or fit test has been performed; the images depict digital geometry.
The model and original gallery drawings are CC BY 4.0, attribution to Sewlore. Developed with AI assistance.
