Modular Raspberry PI case

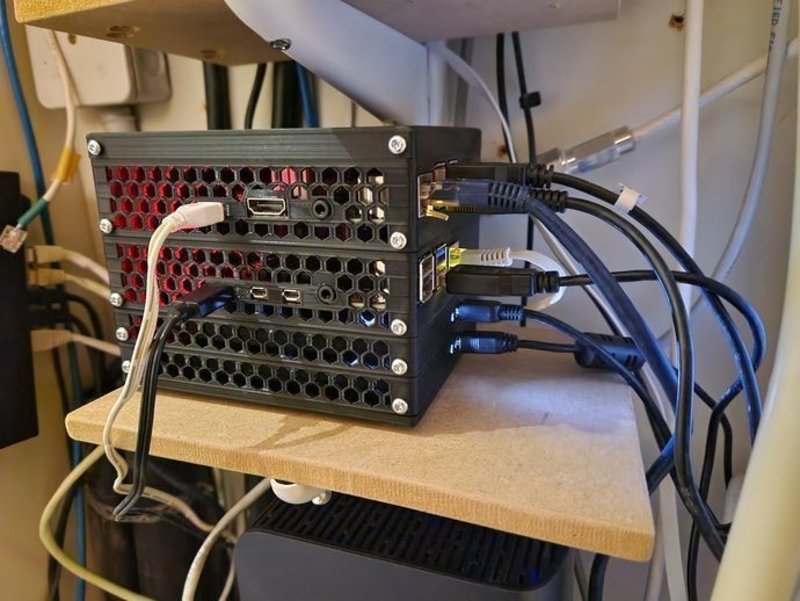

Modular case for Raspberry PI 3B+, 4, 5 and 2.5" disk. A rack can be combined with any number of Raspberry PI's and disks. There are two different modules for disks, they are made to fit the two different adapter cards I have taken from USB disk drives. 'Disk 1' is taken from a LaCie Porsche disk, of unknown model. 'Disk 2' is from a Western Digital WD1600ME-01.

The RPi 5 has a switch for boot, the case has a rod that exposes this switch externally, this rod also is in a separate file, in case you want it in a contrasting color.

The screws I have designed for are 3*16mm wood screws.

RPI 3B+-30.stl: 30mm high frame for RPI 3B+ RPI 4-30.stl: 30mm high frame for RPI 4 RPI 5-30.stl: 30mm high frame for RPI 5 Disk-1-15.stl: 15 high frame Disk-2-15.stl: 15 high frame BackCoverSingleFan-45.stl: Back cover for one RPI and one disk with holes for one 4010 fan, 45mm high BackCoverSolid-30.stl: Back cover without holes for fan, 30mm high BackCoverSolid-15.stl: Back cover without holes for fan, 15mm high FanCover.stl: Back cover for two RPIs, two disks and two 4010 fans, alone in a stack BackCover: Back cover for one RPI and one disk, without holes for fan screws.

The fans I used are from Amazon: https://www.amazon.se/gp/produ... But any 4010 fans can be used.

Print Settings Rafts:No

Supports:No
