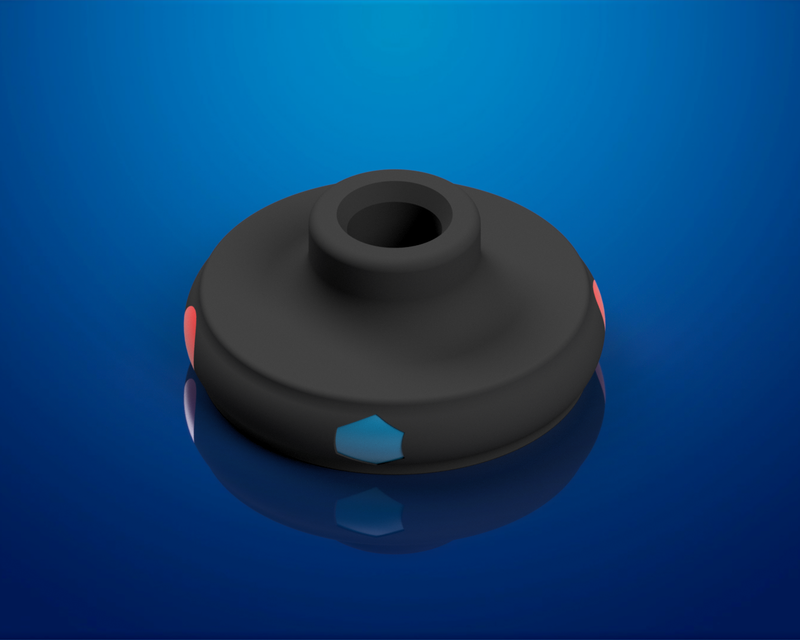

The roller is a replacement part for the old broken rollers.
Spare part for roller Hörmann 3007936.
The roller is split in two for easy assembly. The following parts are needed:
My 3D CAD data: 2x track roller 2x round cover 2x hexagonal cover
Standard parts: 2x ISO 4762 M3x20 (screw)
Lock nuts or standard nuts can be used. 2x ISO 4032/4035 M3 or 2x DIN 985 M3
Glue the caps into the roller with some super glue! Perfect spare part for old broken rollers.
Loading prints...
LAUFROLLE - HÖRMANN - GARAGENTOR - 3007936
