MT Explorer Scout

Prints (2)

Description

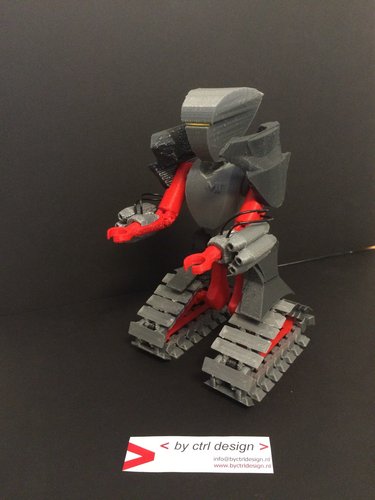

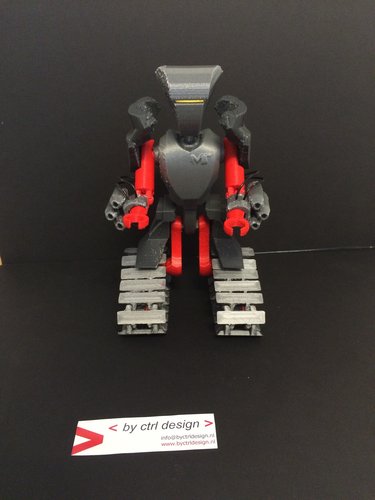

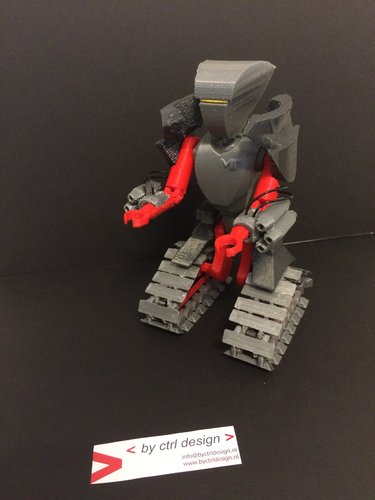

MT Explorer Scout for exploring new grounds and areas to let the population of MT bots grow.  Keywords of Andres Parada; toy, retro, simple, basic and modular. The design of the mt explorer is based on these keywords. For the legs I wanted to do something different and have thereby been inspired by walle.e The model in the pictures is printed in the lowest quality and with the highest speed. With the best quality settings you will get a lot better result. The design is kept as simple as possible so you can print the MT Explorer Scout anywhere and on any printer. Many parts can be printed without support. cables and eye line are not printed but 1,75mm filament. printer settings; parts are printable on a hot and a cold printbed thickness: 0.2 mm max for a good result nozzle: 0.3mm to 1mm filament pla 2,85mm / 1,75mm <ctrl by design> printing speed depends on the printer you are using and the slicing program. This one is printed with simplify3d on a opiliones delta printer

Design Files

File Size

catapiler leg part 1 2x by ctrl design.stl
219 KB
catapiler chain 36x by ctrl design.stl
525 KB
catapiler leg part 2 left by ctrl design.stl
176 KB
head by ctrl design.stl
99.4 KB
catapiler wheel 6x by ctrl design.stl
225 KB
arm shield 2x by ctrl design.stl
219 KB
arm right guns by ctrl design.stl
453 KB
arm left guns by ctrl design.stl
453 KB
arm right part 1 by ctrl design.stl
241 KB
catapiler frame left 2x by ctrl design.stl
318 KB
arm right part 2 by ctrl design.stl
273 KB
arm part conector 2x by ctrl design.stl
30.3 KB
arm left part 1 by ctrl design.stl
242 KB
arm body conector 2x by ctrl design.stl
74.9 KB
MT_Torso_Master.stl
21.7 MB
arm left part 2 by ctrl design.stl
274 KB
catapiler frame right 2x by ctrl design.stl
318 KB
catapiler leg connector by ctrl design.stl
113 KB
catapiler leg part 2 right by ctrl design.stl
175 KB
head body conector by ctrl design.stl
74.9 KB
