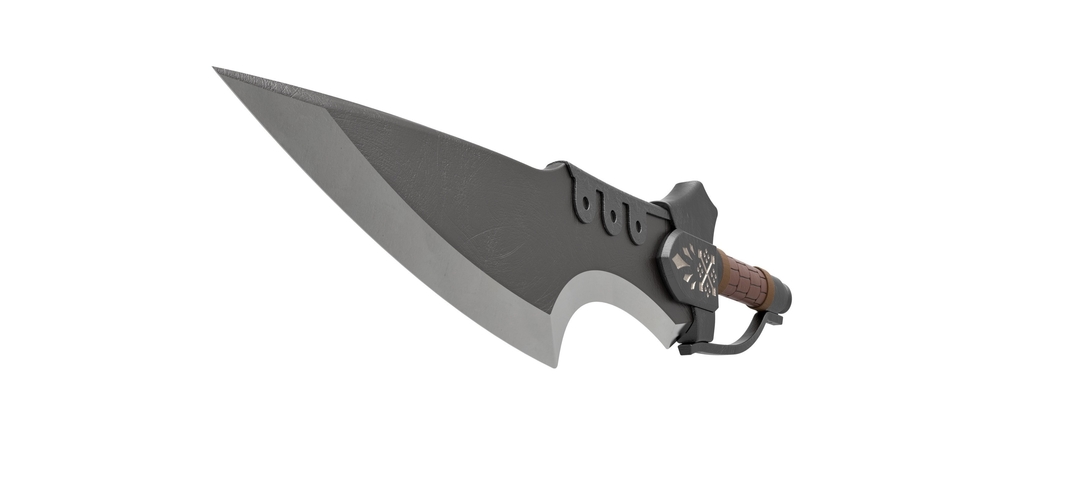

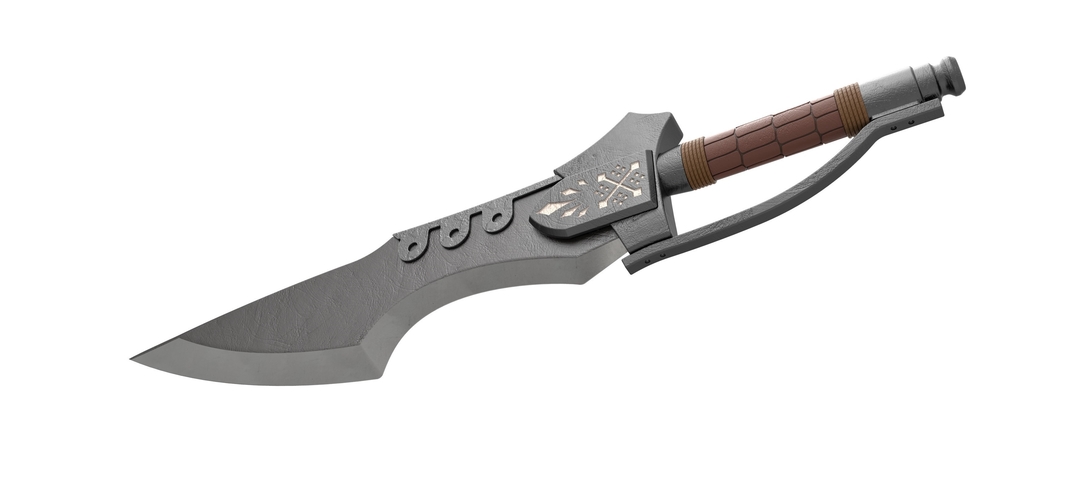

Flame blade from Monster Hunter

Prints (0)

Description

Model dimensions:

- length – 1020 mm

- height – 242.5 mm

- width – 52 mm

- max length of the part – 242 mm

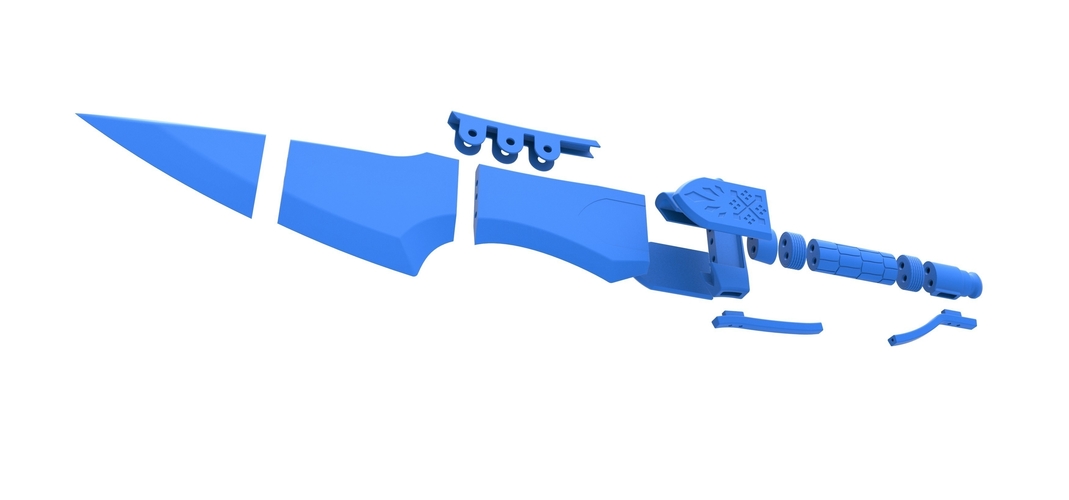

The model consists of parts: Blade part 1-3, Blade shell, Guard, Handle bar part 1,2, Handle part 1-5, Side plate 1,2.

During assembling use guiding metal rods with diameter 8 and 4 mm.

Design Files

File Size

RackMultipart20210225-46-1rnzsyq.zip/Blade.mtl
1.73 KB
RackMultipart20210225-46-1rnzsyq.zip/Blade.obj
86.2 MB
RackMultipart20210225-46-1vaxjw1.zip/Blade_disassembled.mtl
1.32 KB
RackMultipart20210225-46-1vaxjw1.zip/Blade_disassembled.obj
140 MB
Side plate 2.STL
8.41 MB
Side plate 1.STL
8.4 MB
Handle part 5.STL
3.52 MB
Handle part 4.STL
20 MB
Handle part 3.STL
18.2 MB
Handle part 2.STL
20 MB
Handle part 1.STL
1.01 MB
Handle bar part 2.STL
2.41 MB
Handle bar part 1.STL
2.61 MB
Guard.STL
4.78 MB
Blade part 2.STL
615 KB
Blade part 1.STL
261 KB
Blade part 3.STL
502 KB
Blade shell.STL
9.99 MB
